miauu's Live Measure Pro

By miauu · 2014-05-15

Version
3.6.05
Version requirement
3DS Max and 3DS Max Design 2013 - 2027
Other software required
dotNet 3.5
Date updated
2026-07-15
Votes
12
Homepage
https://miauu-maxscript.com/
External download
External download
Description

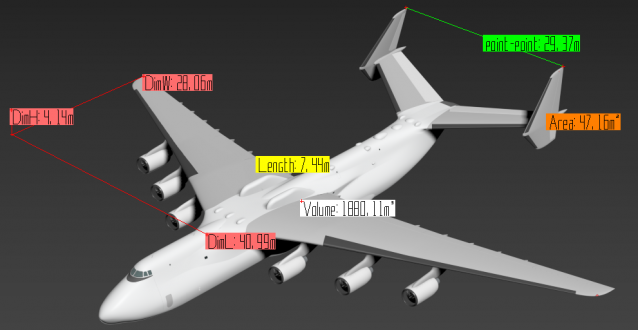

miauu's Live Measure Pro provides several options for measuring various aspects of your scene - distances, areas, lengths, angles, sizes, axis difference, volumes, radius, diameter, slopes.






  • Each measurement can be controlled separately.
  • Export all measurements as a .txt file.
  • Add custom notes to each measurement.
  • Manual update or update in real time.
  • User defined colors and captions for the measurements.
  • Color coded.
  • The measurements are always facing the viewport/camera.
  • Can keep track of your dimensions.
  • Save and Load all measurements with your scene. This will saves you time and the time of your colleagues.
  • Fully functional mini UI.
  • Measurements can be written in the User Defined Properties of the object
  • Resizable UI
  • Custom font size















Works best when the display driver is Nitrous(3dsMax 2012 +)

Known Issues:
- In the .txt file with exported measurements some of the special signs as cubic meter, square meter,  angle will not be shown properly.

 The measurements, that are visible in the viewport can't be rendered.

This is a commersial script.

You can find more information here.



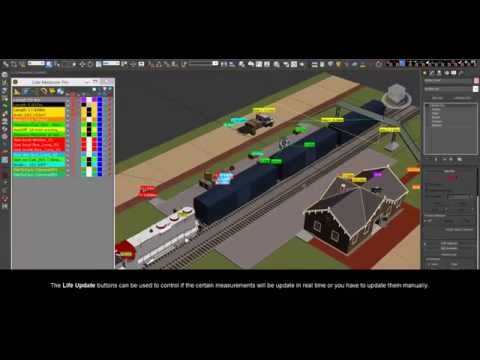

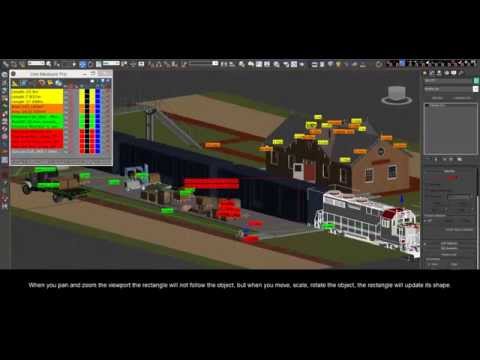

Videos
