MCG Ring Dots aka Dot Matrix

By vusta · 2016-07-28

Version: 1.01
Version requirement: 2016
Other software required: 2016 + SP3 + EXT1/2, 2017
Date updated: 2016-08-03
Votes: 11

Downloads

vu_dotmatrix_1.01.zip — vu_dotmatrix_1.01.zip31 KB
vu_dotmatrix_1.00.zip — vu_dotmatrix_1.00.zip30 KB
vu_ringdots_1.02.zip — vu_ringdots_1.02.zip19 KB
vu_ringdots_1.01.zip — vu_ringdots_1.01.zip19 KB
vu_ringdots_1.00.zip — vu_ringdots_1.00.zip7.4 KB

Description

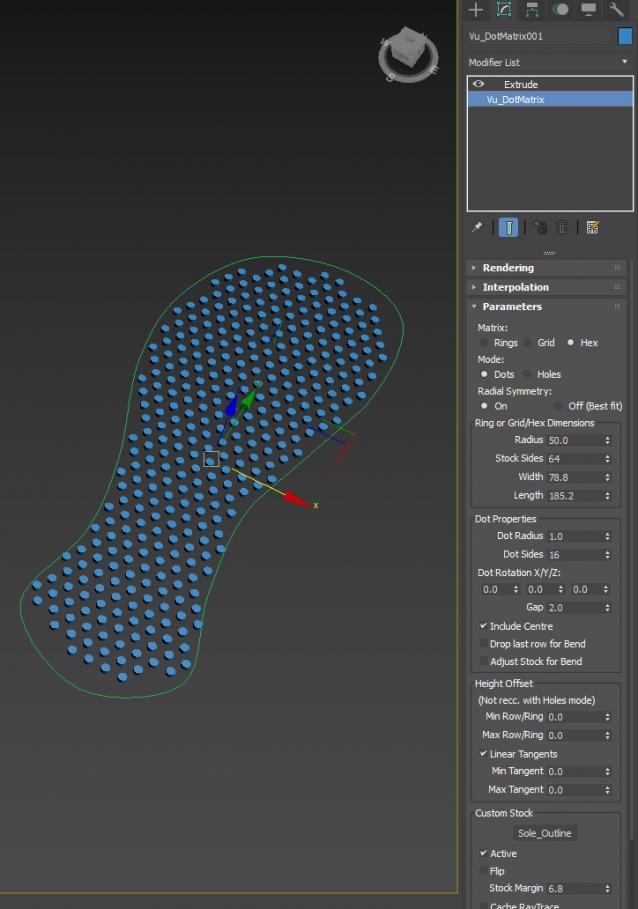

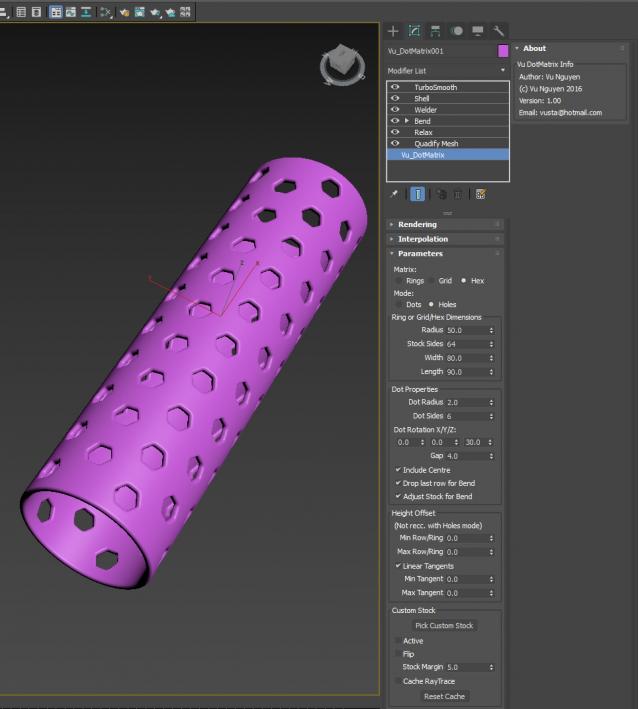

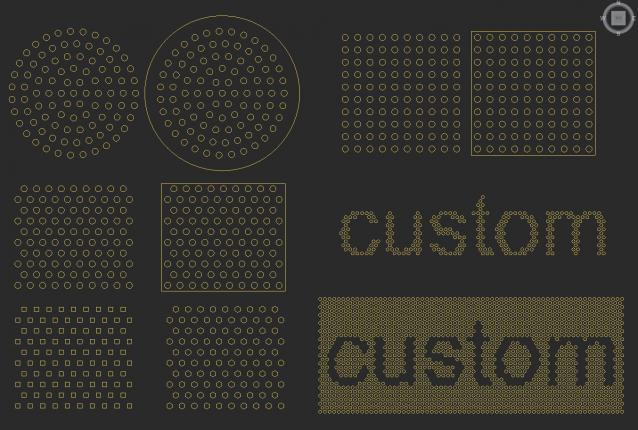

Creates rings of dots or holes...ie..can be used for speaker patterns, showerheads, brushheads...etc..

Ver 1.01: added Height Offset and ability to use Custom Closed Spline for Stock. This can be used in either Dots or Holes mode.

ver 1.02: added Cache Reset..but more importantly, pls watch video to prevent crahes...

I've gone backwards to ver 1.00....cos I've decided to call this Dot Matrix instead...

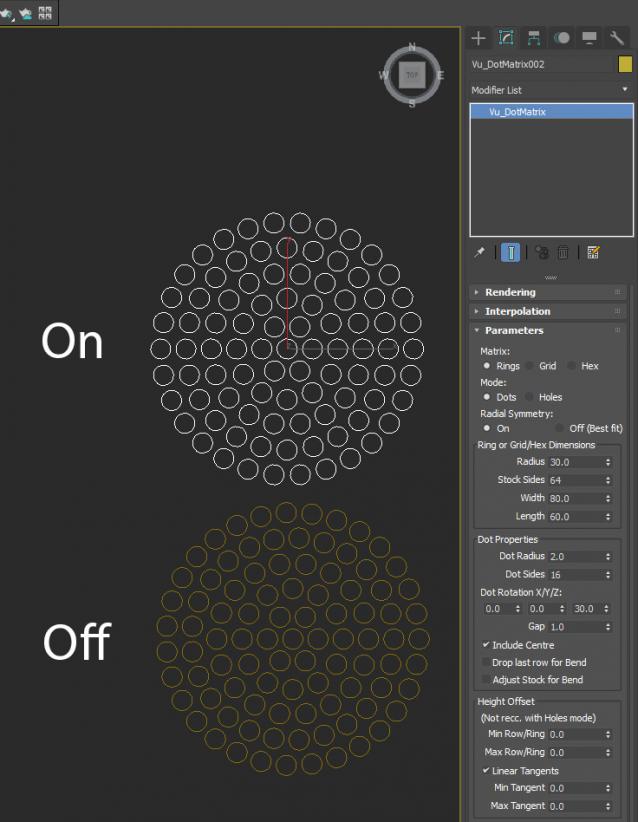

ver 1.01: added Radial Symmetry option. When On, the number of Dots for each ring is always a multiple of 6...ie. it looks perfectly symmetrical radially...but the actual gap is less true to the defined Gap. When Off (Best fit), each ring (circumference) will try to fit as many Dots in as possible..so while it may not be perfectly symmetrical radially, the actual gap is closer to the defined Gap.

Videos

Comments (2)

3ds Max 2020.3 - work good

x_OL · 2020-02-03

Vusta, thanks for good tool
- installed just today - I am tried different features of script - all working good :)
If it can build clear quad topology between holes (not as 3ds max Quadify) - it will be one of the best scripts for modeling

Attachments

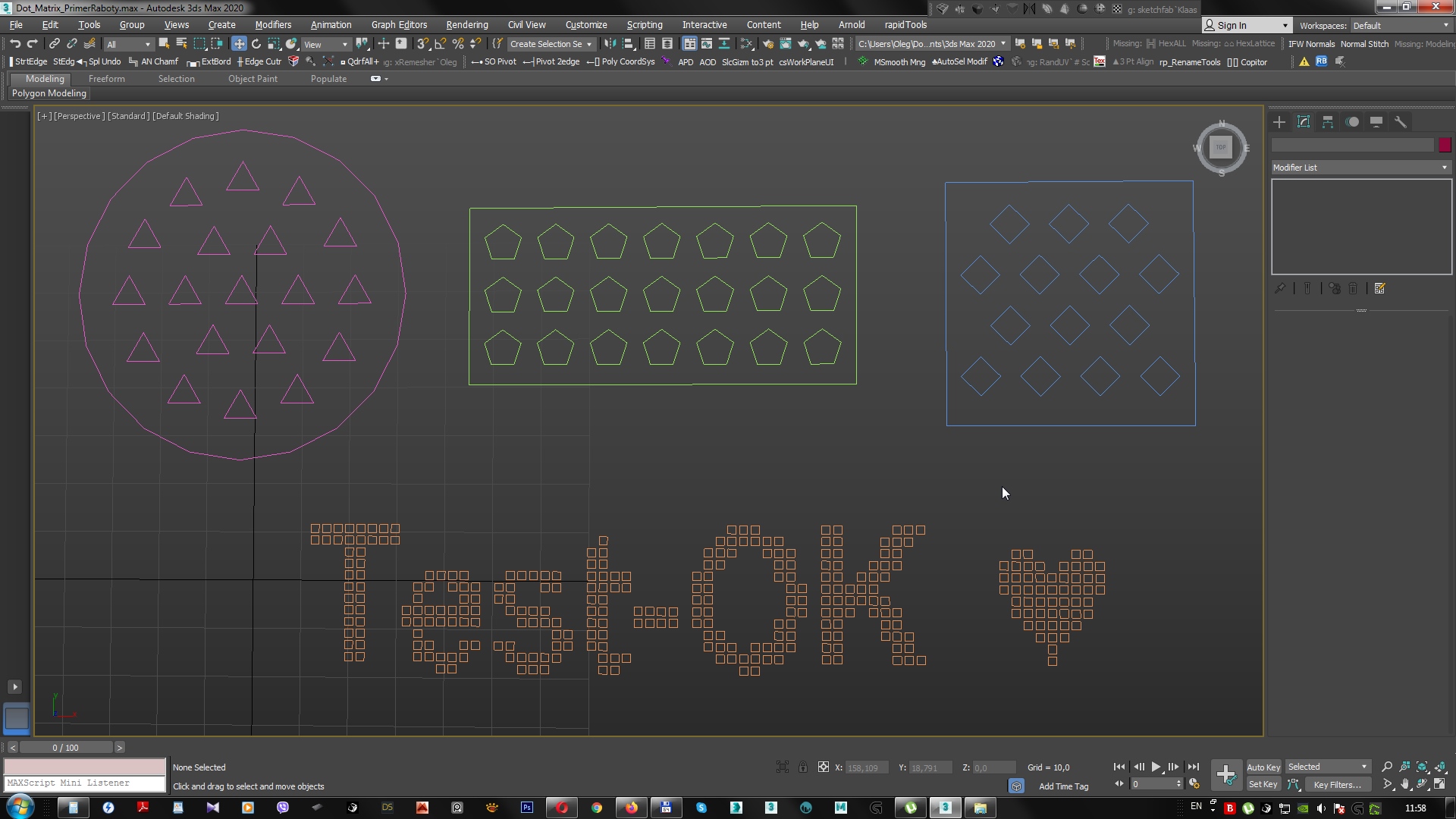

2020-02-03_11_58_45-greenshot.jpg — Test.jpg462 KB

ver 1.01

vusta · 2016-07-29

- added Height Offset
- added ability to use Custom Stock (a Closed Spline)
