MultiMap [no longer maintained]

Downloads

Release history (5)
  • Version 2.3Listed version

    Listing updated

    Release notes

    v 2.3 • major bugfixes regarding map transformations • general optimizations • ------------------------------------------------------------------------------------------------------------

  • Version 3.0

    Release notes

    Version 3.0 is a complete rewrite, currently available as a Free complement of my tool refGuides. It improves performance and adds new functionality, also fixing to current bugs and a new UI.

  • Version 2.0

    Release notes

    v 2.0 • APPLY MAPS BY POLY ELEMENTS • ADVANCED TRANSFORMATIONS, RANDOM TRANSFORMATIONS • FIT, CENTER Gizmo functions • NEW DOCKABLE UI • general code improvements • ------------------------------------------------------------------------------------------------------------

  • Version 1.04

    Release notes

    v1.04 • Fixed an error with flip tile checkboxes • Added ability to "lock" the spinners

  • Version 1.1

    Release notes

    v1.1 • Code optimization and bugfixes • feature change: now its possible to change map tiling values in "fit" mode • new: added Real World Scale option

3ds Max compatibility
Unknown
Community reviewsNo reviews yet.

Listing details

Version
v 2.3
Original version requirement
3d Max 2011+
Author’s update date
Legacy votes
3
Listing created
How compatibility works

Compatibility comes from the author’s supported range or requirements in the original listing. A tested version records what the author tried.

“2020 unconfirmed” in the catalog means support for 3ds Max 2020 is still unknown.

Community reports record successful tests on specific releases.

Posted by

Atelier Bump

Ariel G

More by this author



IMPORTANT NOTE:

I stopped the development of this version an it's likely to continue that way. The last version available to public download is 2.3 and present some unfinished bugs.

Version 3.0 is a complete rewrite, currently available as a Free complement of my tool refGuides. It improves performance and adds new functionality, also fixing to current bugs and a new UI.

------------------------------------------------------------------------------------------------------------

UPDATE!

  • v 2.3
  • major bugfixes regarding map transformations
  • general optimizations
  • ------------------------------------------------------------------------------------------------------------
  • v 2.0
  • APPLY MAPS BY POLY ELEMENTS
  • ADVANCED TRANSFORMATIONS, RANDOM TRANSFORMATIONS
  • FIT, CENTER Gizmo functions
  • NEW DOCKABLE UI
  • general code improvements
  • ------------------------------------------------------------------------------------------------------------
  • v1.04
  • Fixed an error with flip tile checkboxes
  • Added ability to "lock" the spinners
  • v1.1
  • Code optimization and bugfixes
  • feature change: now its possible to change map tiling values in "fit" mode
  • new: added Real World Scale option

HOW TO USE

  • 1- Select objects to be mapped, run the tool
  • 2- Set Map options, if you leave "Edit Map" unchecked, the gizmo will be fitted to each destination objects
  • 3- The little "L" boxes lock togheter the spinners
  • 4- Apply/Delete Map!
  • NOTE: real world scale doesn't support all map types, so if an invalid one is selected, box mapping will be applied instead.

Setup & notes

INSTALL | for 3ds Max 2014:

  • Copy Files to:

*.mcr C:/users/[your_current_user]/AppData/Local/Autodesk/[your_3ds Max edition]/[your_3ds Max version]/ENU/usermacros
*.ms C:/users/[your_current_user]/AppData/Local/Autodesk/[your_3ds Max edition]/[your_3ds Max version]/ENU/scripts

  • Drag and drop *.mzp file in Max viewport
  • Restart Max
  • The tool is located under de category "HAG Tools", Drag and drop it to a toolbar.
Comments (18)
david hurlbut

multimap still available

greetings, is this tool still available? it is not found on the developers website. anyone have this still? thanks!

3dwannab

Adding that would be great. And I'd rather the UVW xform modifier to change/randomise the UV's as opposed to manipulation of the UVW Map gizmo anyway. Look forward to the update.

3dwannab

This tool doesn't allow to randomly move, scale UV's after you unwrap them. If it did then it would be awesome. The UVW xform is slow having to modify each object separately.

I'd be very grateful if this could be implemented. Thanks.

Reply to 3dwannab
Ariel G

Sorry Stephen, Transform only works in nodes with an UVWmap modifier applied.

As far as I know, there is no exposed method to maxscript to manipulate uvw coordinates (at least not one that doesn't require a lot of low-level programming...)
the Best I can do, is to add an option for adding individual UVW Xform modifiers in a single step.

Regards!

Ariel G

I will look foward for the error, I must forgot something...  I just updated the script with the fix.

I understand what you say about Gizmo oriented to face normal, but cince aligment options for UVWmaps isn't exposed to maxscripts, the only way its to recreate it, it can be done, but its a lot of work.

Vidi

Hi Ariel, finally you did! All new features sounds great, but I have some questions

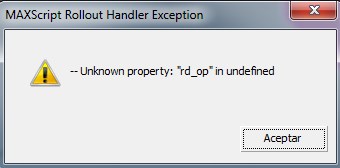

I can't use Advanced Transforms. APPLY, FIT and CENTER send me and error (see attached)

When you work with select faces, scripts put one uvw fitted for all select faces. It can be useful, of course, but I think would be good an option to put an individual uvw in each face oriented to its z normal

Less important. In Map Dimension I have 100m by default, I see in your capture 1m and it would be right. 100m or 10000cm seems to be too high for default number

Thanks!

Attachments
Vidi

Very nice Ariel, I think you can add two things and you would have a perfect all in one for rapid uvs.

First, randomize parameters. Transform, rotate, scale. There are some nice scripts here and maybe you can implement code fastly. For rotate, aleatory valours from a degree to other, but would be useful you can put fixed valours. For example. 90, -90, 180, -180... and random only take this valours.

Second, work in suboject level. Polygon or element. Now is easy detach all element, run your script and then attach elements, but an all in one would be great ;)

By the way, if you can leave all as you have, for me is a very useful script

Thanks

Reply to Vidi
Ariel G

Hi vividini!.
Like to hear the tool it's useful to you. I've partially implemented element subselection, and you random transformations its a nice suggestion. I itend to add too an option for random select appli ID's to elements too.
I will leave this script at it is, and relase a full featura one, hopefully soon.

Greets.

Reply to Ariel G
Vidi

Very nice Ariel! Waiting for see new features and probably suggest more things ;)

themaxxer

a "use real scale" checkbox would be great too! I use this most of the time.

thanks for your effort.

best regards
themaxxer

Reply to themaxxer
Ariel G

Thanks.
Well,yes think I can add it. But, i'm curious, I never found real-world mapping to be useful or to work correctly, but it seems its just me XD.

Reply to Ariel G
themaxxer

I find real scale very useful, because you set the dimension of a map in the bitmap itself. so you can apply different materials with complex bitmap setups (each bitmap with other dimension) to your model with one UVW map. you don't need uvw 1 channel 1 dimension 100x100, uvw 2 channel 2 dimension 200x200, etc.

best regards
themaxxer

Reply to themaxxer
Ariel G

Added Real world scale feature you asked for, also, some bugfixes, hope it will be useful.

Vidi

Fit

An option to fit uvwmaps in each object would be great

Reply to Vidi
Ariel G

Hi.
When you apply a Map without setting dimensions, the gizmo its automatically fitted, but the methods for fitting, centering, etc aren't exposed to maxscript for implementing in script. However, there is already a script here (Fit the UVW Mapping Gizmo from Anubis) that reproduces the fit functionality, but seems to not properly center the gizmo. The solution explained here http://www.scriptspot.com/bobo/mxs9/uvwgizmofit/index.html has a centering function, but I was't hable to make it work in all cases, aparently max do strange things when you move/scale etc the uvw map gizmo and i can't get it to work, if someone has a solution, i will add it to the script.

Reply to Ariel G
Vidi

"When you apply a Map without setting dimensions, the gizmo its automatically fitted"

So great¡¡ for me is very useful in this way

Thanks¡

1rv

What drives me nuts in 3ds Max is absence of 'lock to the bitmap proportions' feature. Could it be made at least via script (of yours, for example ;))?

Reply to 1rv
Ariel G

Yes, it could be easy to do, I will add it to the script, thanks for the suggestion
