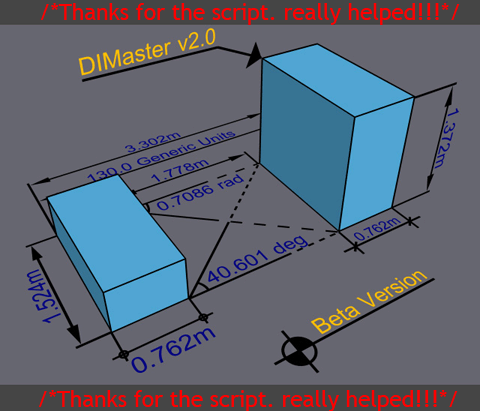

CAD-like Linear Dimensioning based on Tape Helper objects. Support for Rendering - Text and Arrow styles - colors - size and position etc. Updated - support for some common units (m -cm -km -mm - dec.feet - dec.inches)
DIMaster
Downloads
Version 0.21Listed version
Listing updated
Visit author’s download pagewww.scriptspot.com
Earlier releases (1)
Version 2.0
Listing updated
- DIMaster_20080824.zip441 KB
Release notes
Bobo's August 24, 2008 build of DIMaster 2.0. The ZIP contains the installation readme and illustrated help and tutorials in Help/DIMaster.chm. Installation for the original 3ds Max versions: 1. Copy the contents of Plugins into the 3ds Max Plugins directory. 2. Copy the contents of Icons into UI/Icons, or into UserIcons if you use profiles or Windows Vista. 3. Copy the contents of MacroScripts into UI/MacroScripts, or into UserMacros if you use profiles or Windows Vista. 4. Start 3ds Max. In Customize User Interface, find the DIMaster category and add DIMline, DIMangle, or DIMnote to a toolbar, menu, or keyboard shortcut. Bobo's readme reports testing with 3ds Max 7, 8, 9, 2008, and 2009.
- 3ds Max compatibility
- See original listing claims
Community compatibilityNo compatibility reports yet
No reports yet for the available releases.
Community reviewsNo reviews yet.
Listing details
- Version
- 0.21
- From original requirements
- 2
- Original version requirement
- 2
- Author’s update date
- Legacy votes
- 14
- Listing created
- Homepage
- http://www.scriptspot.com/bobo
How compatibility works
Compatibility comes from the author’s supported range or requirements in the original listing. A tested version records what the author tried.
“2020 unconfirmed” in the catalog means support for 3ds Max 2020 is still unknown.
Community reports record successful tests on specific releases.
Comments (8)
Comment policy
Work with 2020
I was looking for a tool to measure angle of roof in 3dsmax.
This is the script you need !
DIMaster
Does not work for 2017. Pls, will make new version.
Thanks!
Thanks for the script!
IMHO a similar function should be inside 3dsmax. Vote here: http://3dsmaxfeedback.autodesk.com/forums/80695-general-feature-requests…
EDIT: Have made a simple install batch file here: https://gist.github.com/jedie/6363031
Some info
Works also in 2013 just fine. Love it.
Note for the 2013 users who may find that the button icons are not present.
Make sure to put the icon strips in the directory that Bobo specifies for
Vista users.
See the readme file.
This is good stuff.
Where is in max
I run it but not visible can u tell me where is it actually agter run this.
Thanks.
(No subject)
Attachments
This is absolutely fantastic!
Exactly what I was looking for.
It (DIMaster 2.0) even works in 3ds Max 2012.
Great coding!
THX!
I was searching for this script here at scriptspot, but cold not find the newer V2.0 version of this script.
Found it here (Google): http://www.scriptspot.com/bobo/mxs9/DIMaster/index.html
This is a great script.
