Create Animation Bounding Box

Downloads

3ds Max compatibility
Unknown
Community compatibilityNo compatibility reports yet

No reports yet for the available releases.

Community reviewsNo reviews yet.

Listing details

Version
3dsmax 2009
Author’s update date
Legacy votes
15
Listing created
How compatibility works

Compatibility comes from the author’s supported range or requirements in the original listing. A tested version records what the author tried.

“2020 unconfirmed” in the catalog means support for 3ds Max 2020 is still unknown.

Community reports record successful tests on specific releases.

Posted by

allanmckay

More by this author

Description

Script I built to work with Fume FX, but can probably be used for many other things.
The idea is that I wanted to roughly work out the entire dimensions of a characters animation, so a bounding box - of the entire animation.

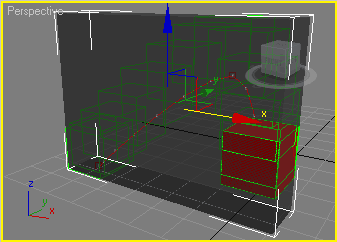

Lets say I have a character running, and jumping, and falling over - and I want him to be on fire, this tool will track all of the dimensions of the character for the entire animation duration and build a bounding box representing the exact area he's covered.
This way I can create a fairly accurate Fume FX container that isn't wasting space.

However could possible be useful for animators, and various other uses.

Comments (1)
Panayot Karabakalov

Hi, Allan. I think you know so the final box is bigger than bounding box with 2.5 in all 3 dimensions, maybe this is what you want, but rather I want to say that its quite complicated code and it runs slowly. Here's a quick idea of me:

rollout myGUI "Anim Box"
(
	pickbutton chooseOBJ "Choose Anim OBJ" width:140
	checkbox keepDum "Keep Helpers" checked:off
	on chooseOBJ picked obj do
	(
		if obj != undefined do
		(
			bb = nodeLocalBoundingBox obj
			for t = animationrange.start to animationrange.end do
			(
				at time t dummy boxsize:(bb[2]-bb[1]) pos:obj.center prefix:"_tmp"
			)
			select $_tmp* ; tbb = $.max-$.min ; tc = $.center
			b = box name:"AnimFFX_box" \
			width:tbb[1] length:tbb[2] height:tbb[3] xray:on isSelected:on
			CenterPivot b ; b.pos = tc
			if not keepDum.checked do delete $_tmp* -- del. helpers
		)
	)
)
createDialog myGUI
