Mathsurf

By ali torabi · 2008-12-06

Community reviewsNo reviews yet.
Version
3.0
Version requirement
3ds max 2012 or higher
Other software required
Para 3d 4.63
Date updated
2015-07-17
Legacy votes
81
External download
External download

Tags: Parametric, Mathematical, Surface, Minimal Surfaces, Complex Numbers, Visual scripting, Mathematical curve, Mathematical DEformation, Implicit Surface

Description

snaillshel-mathsurf
Mathsurf version 3.0
Mathsurf is a scripted plug-in for 3ds Max to create and explore mathematical surfaces and geometries in form of the standard editable mesh.

This plug-in works as an extra create tool in category of geometries along with the parameters which can be used in animation to morphing the surface. This package includes over 60 predefined surfaces and ready to use.MathSurf will expand the mathematical functions embedded in max-script and make you able to create differential geometries such as Minimal surfaces.

This script creates surfaces by mapping a 2D rectangular domain into R3
space using specific criteria. The rectangle is the product of the
intervals [uMin,uMax] and [vMin,vMax]. Each point (u,v) of the
rectangle is mapped to a three-dimensional point P with coordinates
(x(u,v), y(u,v), z(u,v)). The mapping is given by writing Pascal procedures
that defines the values of x, y, and z as functions of u,v. In this
method each patch in 3D surface is corresponding by a unique patch in
the 2D domain. This continues surface will be considered as an element
and the program can generate more copies in different orientation and
locations using typical transformations provided by 3dsMax. Therefore
the result could be a multi element object or a polyhedral. Like other
mesh objects in 3ds Max all modifiers are allowed and you can continue
editing by adding the modifiers.

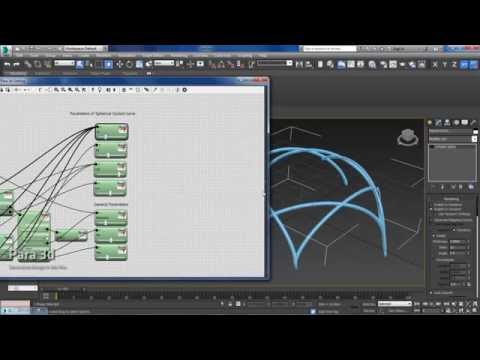

Videos

More by ali torabi

View all contributions
Comments (12)
Stenrik

Same startup error

Getting the same exact error on startup as rezoloot is. I'm using 3DS Max 2014. Installed into the "startup" folder as instructed.

Mark Beckitt

Error in 2015 and 2016 as below

2015 and 2016 have the same error

-- Error occurred during fileIn in "C:\Program Files\Autodesk\3ds Max 2015\scripts\startup\mathsurf\complexNumbers.ms"; line number: 282
-- Error occurred during fileIn in "C:\Program Files\Autodesk\3ds Max 2015\scripts\startup\mathsurf\complexNumbers.ms"; line number: 282

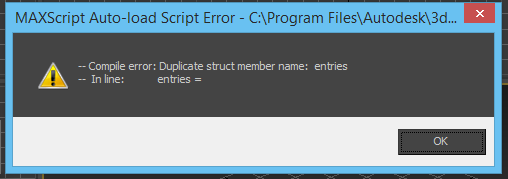

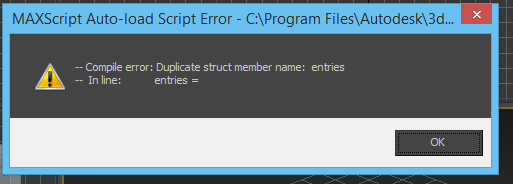

>> MAXScript Auto-load Script Error - C:\Program Files\Autodesk\3ds Max 2015\scripts\startup\Mathcommon.ms Exception:
-- Compile error: Duplicate struct member name: entries
-- In line: entries = <<

Attachments
mahsa

I downloaded it

but it does not install:|
the error says that the uninstall.exe does not exist
what should I do?

dinhduyet

how to use?

help me for how to use? the way to load it open it... thanks for your help! best regard.

Alexandros

hi, obviously for parametric architecture this script is perfect

hi, obviously for parametric architecture of today this script is perfect, but how do i load it in 3ds max ? i have loaded several plugins but i cant understand why i cant find this one. can someone help ?

Kandy

need a tutorial or help.

V-MOTION

i like this plugin, althought it is very very difficult for one to achieve any results, not knowing the right formulas,
the presets are nice, but how to make your own "objectS"

i am very interested in the golden proportions, how can i make "phi" objects?!

thanks for your help

Reply to V-MOTION
ali torabi

I'll come by new version and a bunch of tutorials end of May,

yudArt

It can't use it on max 8,,is this plug in for other max version??

Reply to yudArt
ali torabi

this plug-in has been designed base on max 2008 or higher.

mankin

thanks. intelligent
